型 號 Model Number |
RFB2008N |
|
|
品 名 Product Name |
微側(cè)流扇Micro Blower |
|
|
額定電壓 Rated Voltage (VDC) |
3.3 |
5.0 |
|
運轉(zhuǎn)電壓 Operating Voltage (VDC) |
2.8 ~ 3.6 |
4.5 ~ 5.5 |
|
額定電流 Rated Current (mA) |
85 (max:100) |
140 (max:160) |
|
轉(zhuǎn) 速 Rotation Speed (RPM) |
10,000 ± 15% |
14,000 ± 15% |
|
風(fēng) 量 Air Flow (CFM) |
0.63 |
0.89 |
|

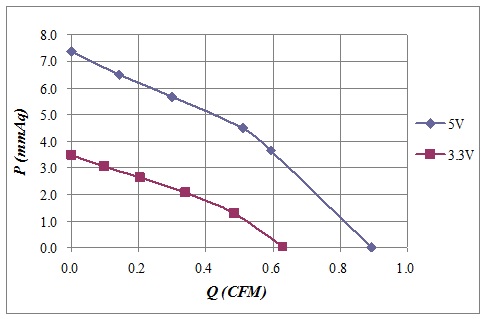

靜 壓 Static Pressure (mmAq) |
3.48 |
7.36 |
|
噪 音 Noise (dB(A)) at1m |
21.8 |
31.1 |
|
絕緣強度 Insulation Resistance |
10MEGA. Ω Min. at 500VDC (between frame and (+) terminal) |
|
|
耐壓強度 Dielectric Strength |
5mA Max. at 500VAC、60Hz、One Minute (between frame and (+) terminal) |
|
|
壽 命 Life Expectancy (hours) |
25,000 at45℃ |
|
|
認 證 Compliance |
CE、RoHS、UL |
|
|
耐水耐塵 IP Rating |
IP58 |
|
|
重 量 Weight (g) |
2.9 |
|
|
保 護 Protection |
?鎖住保護Lock rotor ?自動重啟Auto Restart ?極性保護 Polarity Protection |
|
